Build Diary entries for June 2024

Here are the diary entries for this month. You can use the forward and backward links to see the next or previous months. Most photos taken before 2018 are small size. From 2018 onwards, most photos you see below will have a link to a full size image by clicking on the photo.

Previous Month

Return to 2024

Next Month

Left Hand Trailing Spring Hanger Bracket
03/06/2024

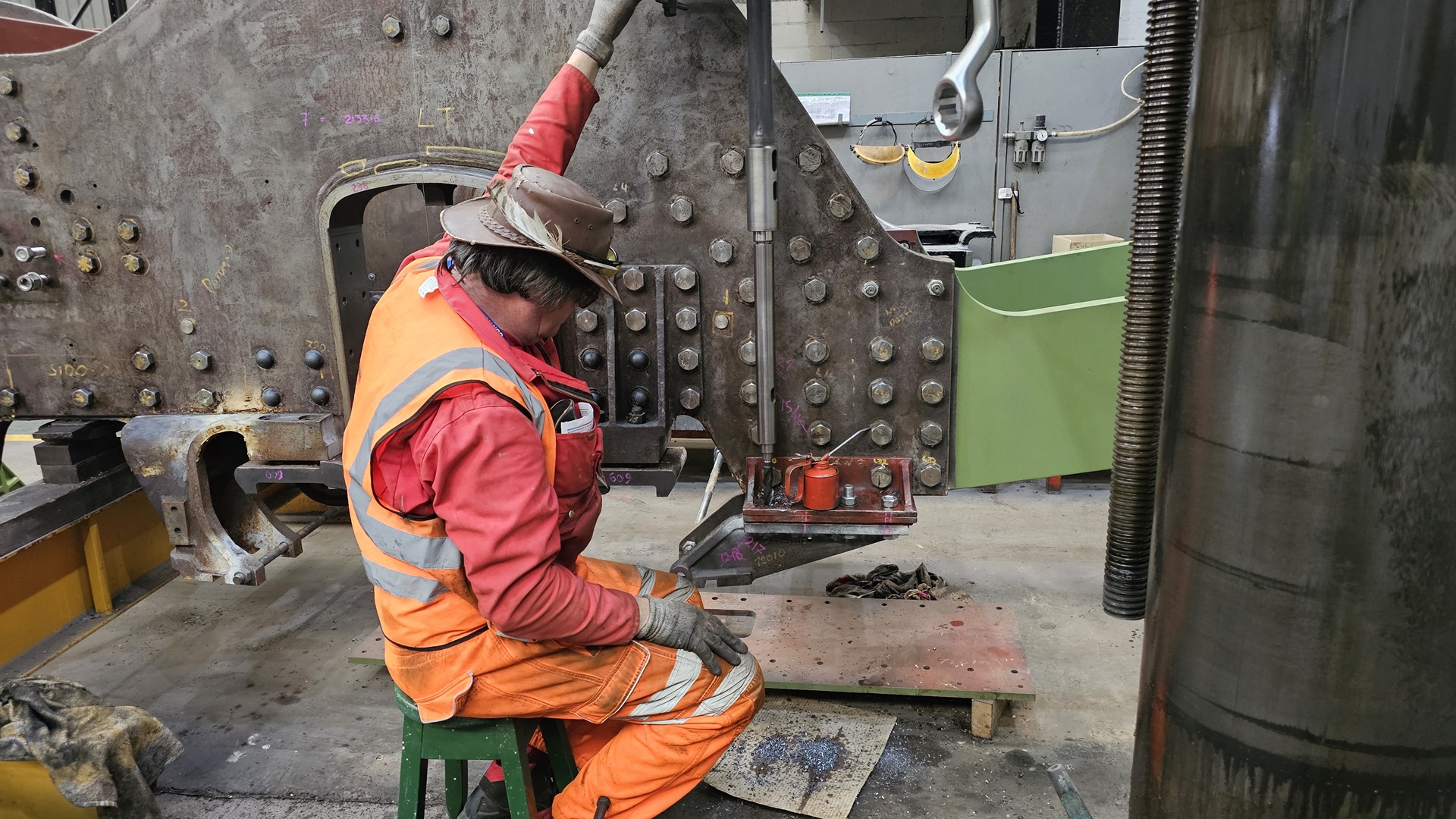

	A better picture this week of drilling the holes to fasten the left hand trailing spring hanger bracket. All 4 outer holes have been drilled, we now need to work out how to drill the inner holes as we will have to drill upwards due to access constraints. The frames now need to be moved so that we can access the right hand side bracket.
Dragbox Drilling Jig
10/06/2024

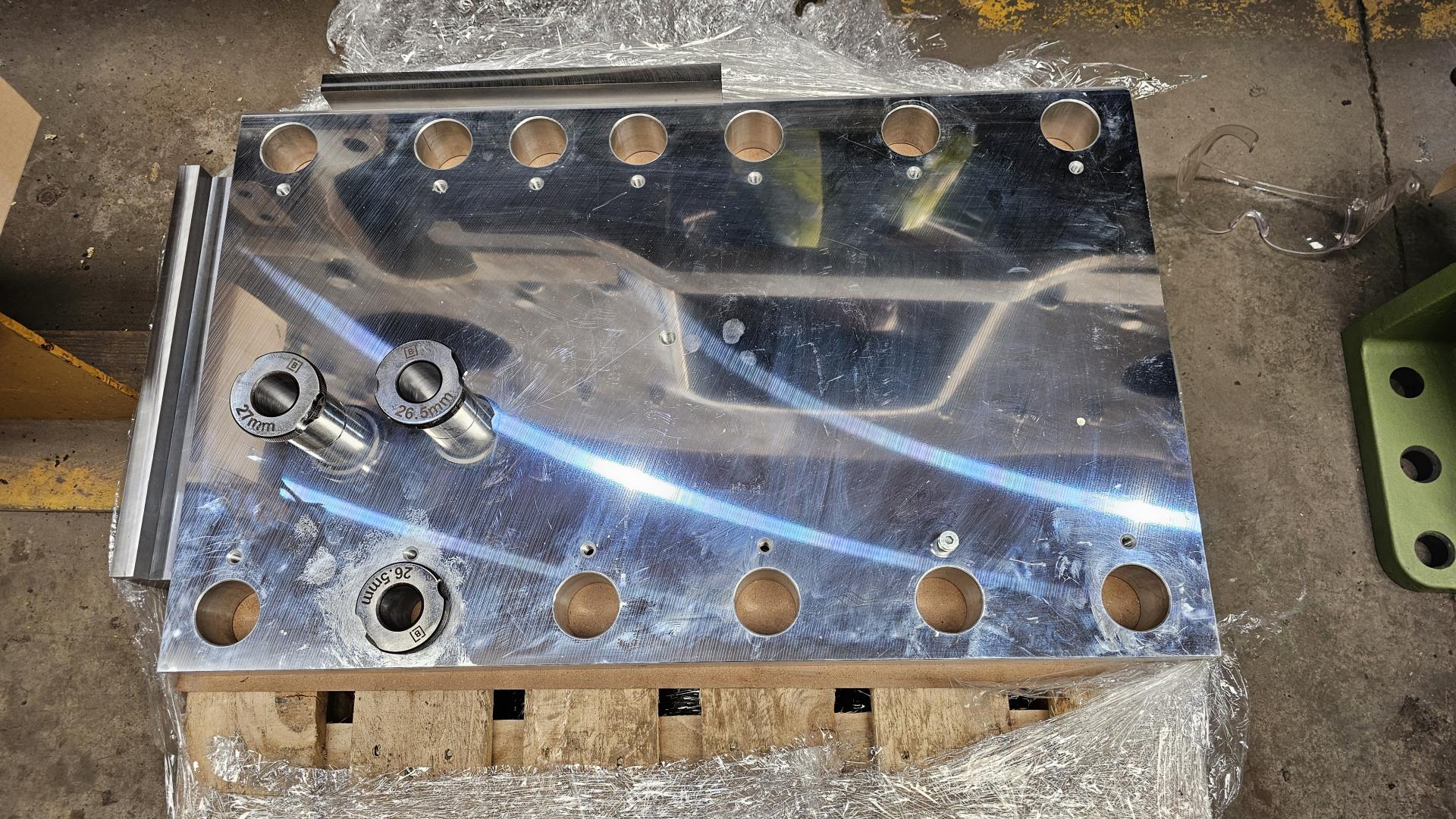

	Today we took delivery of the dragbox drilling jig manufactured by Tybro in Kirkby-in-Ashfield. We have to fasten the dragbox and the hind beam gussets to the rear of the frame extensions at the back of the frames. Fitted bolts need to go through all 3 components. Due to the shape of the gussets, it is not possible to drill/ream the bolt holes to final size so we will need to drill/ream the bolt holes in 2 operations. First the dragbox to the frame extensions, second the gussets. By using this drilling jig, the holes should then line up on assembly. The part marked 26.5 mm is a Boneham and Turner Drill Bush. It will ensure that a 26.5 mm twist drill is lined up correctly. The 27mm part is a bush for reaming to 27mm. Later this week, the frames should be moved so we can work on both sides of the frames.
Cylinders and Valve Gear Design

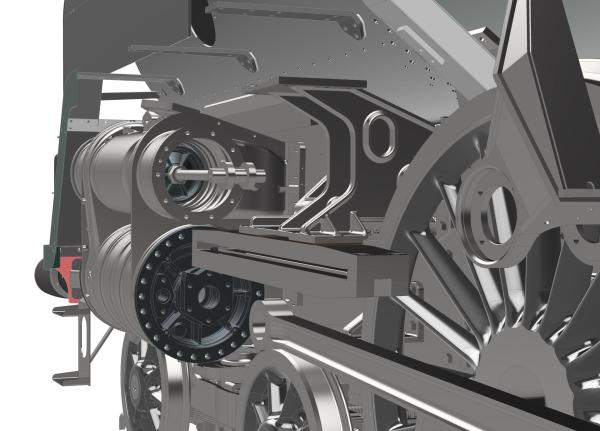

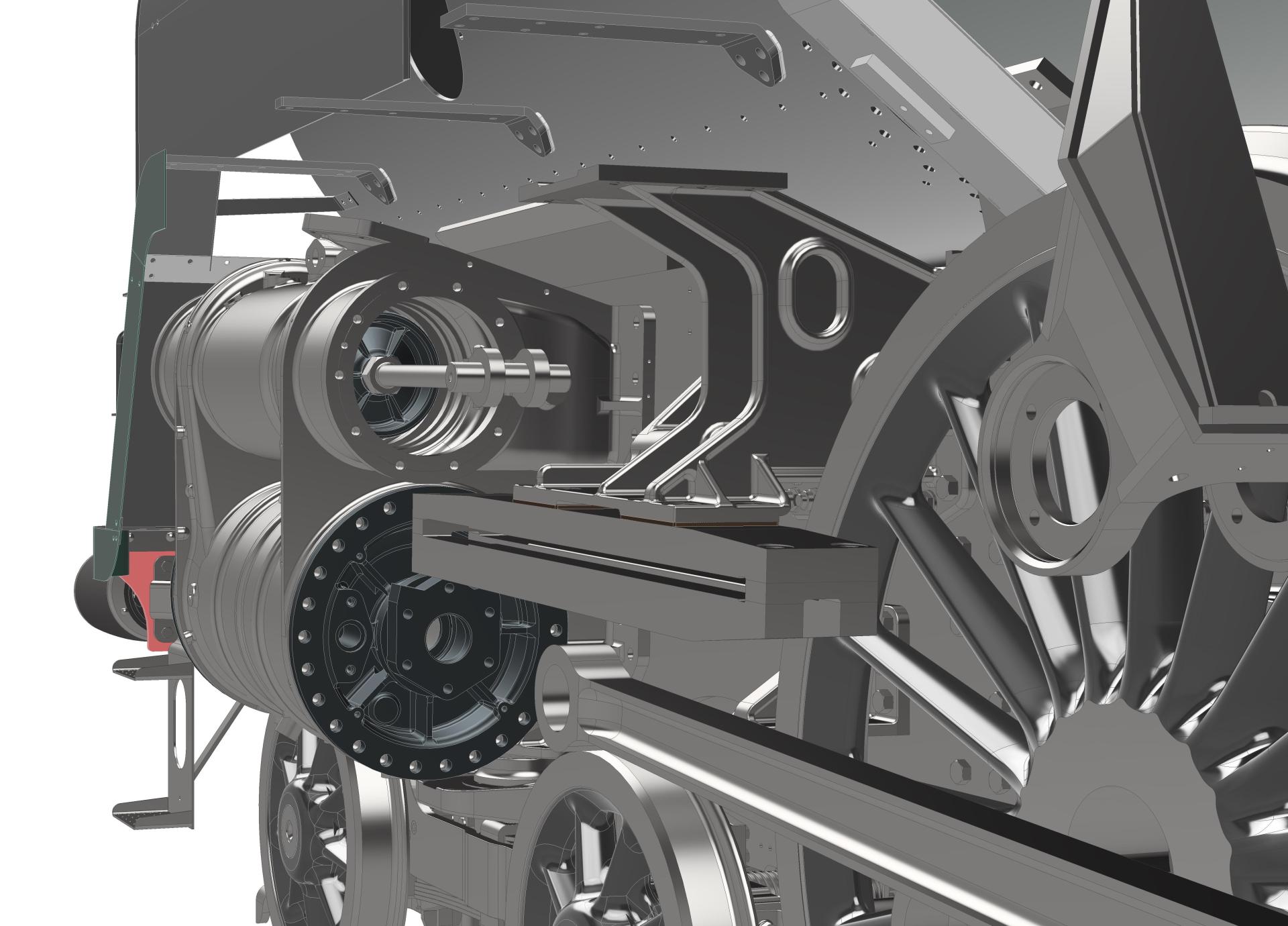

19/06/2024
