News Archive entries for September 2024
Here are the diary entries for this month. You can use the forward and backward links to see the next or previous months. Most photos taken before 2018 are small size. From 2018 onwards, most photos you see below will have a link to a full size image by clicking on the photo.
| Dragbox Installation |
| 04/09/2024 |
| |
 |
| |

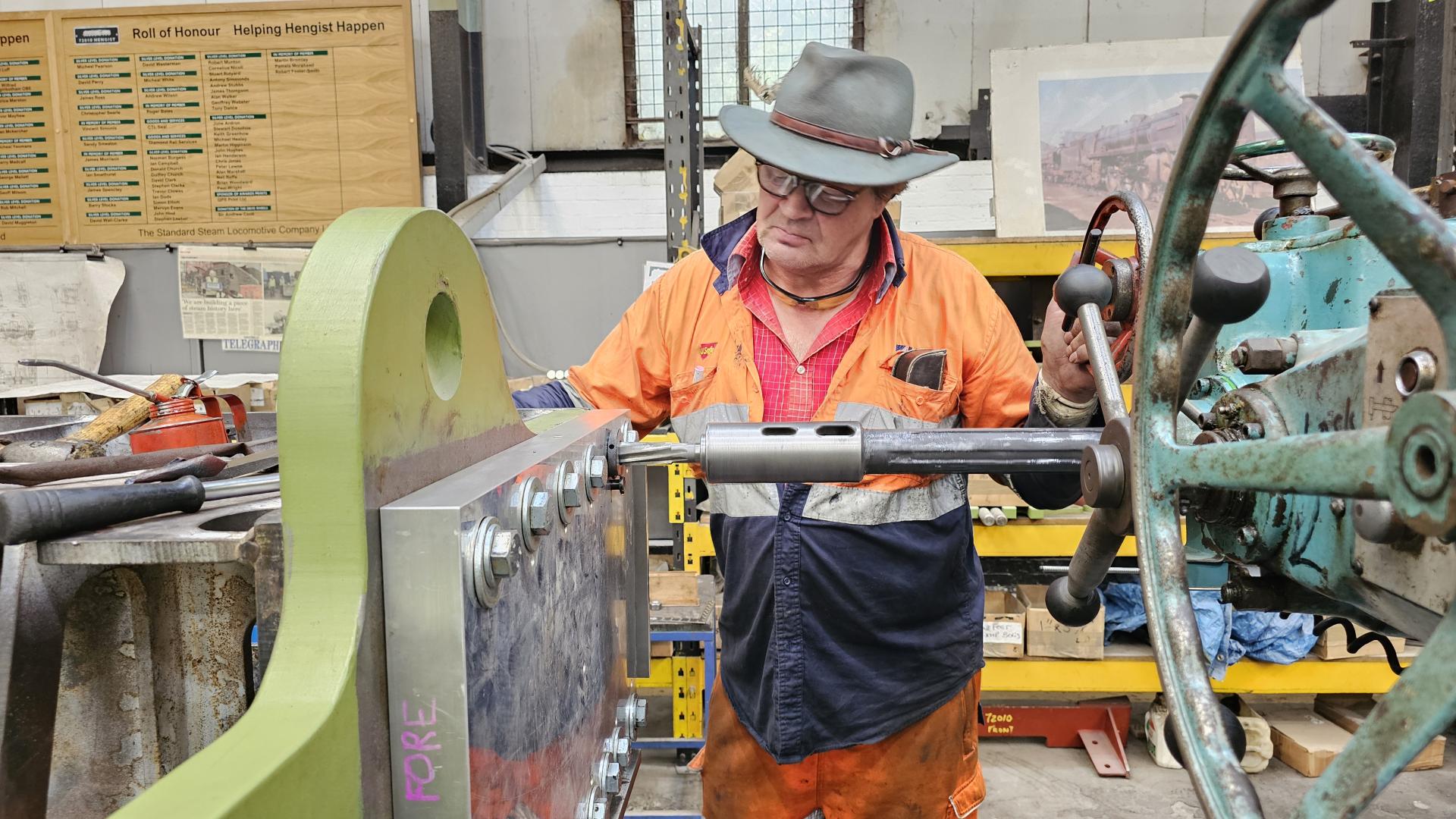

The drill jig is now being used to open out the bolt holes to secure the dragbox in the frame extensions at the rear of the locomotive. Here Mike is reaming the second bolt hole using a drill bush in the jig. Note how all other bolt holes and filled with temporary bolts to ensure that everything is firmly located in place. You can see the steel plates at the back and bottom of the jig which locate the plate against the 2 datum faces. |
| |
|
| Casting of Coupled Wheels |
| 21/09/2024 |
| |
 |
| |

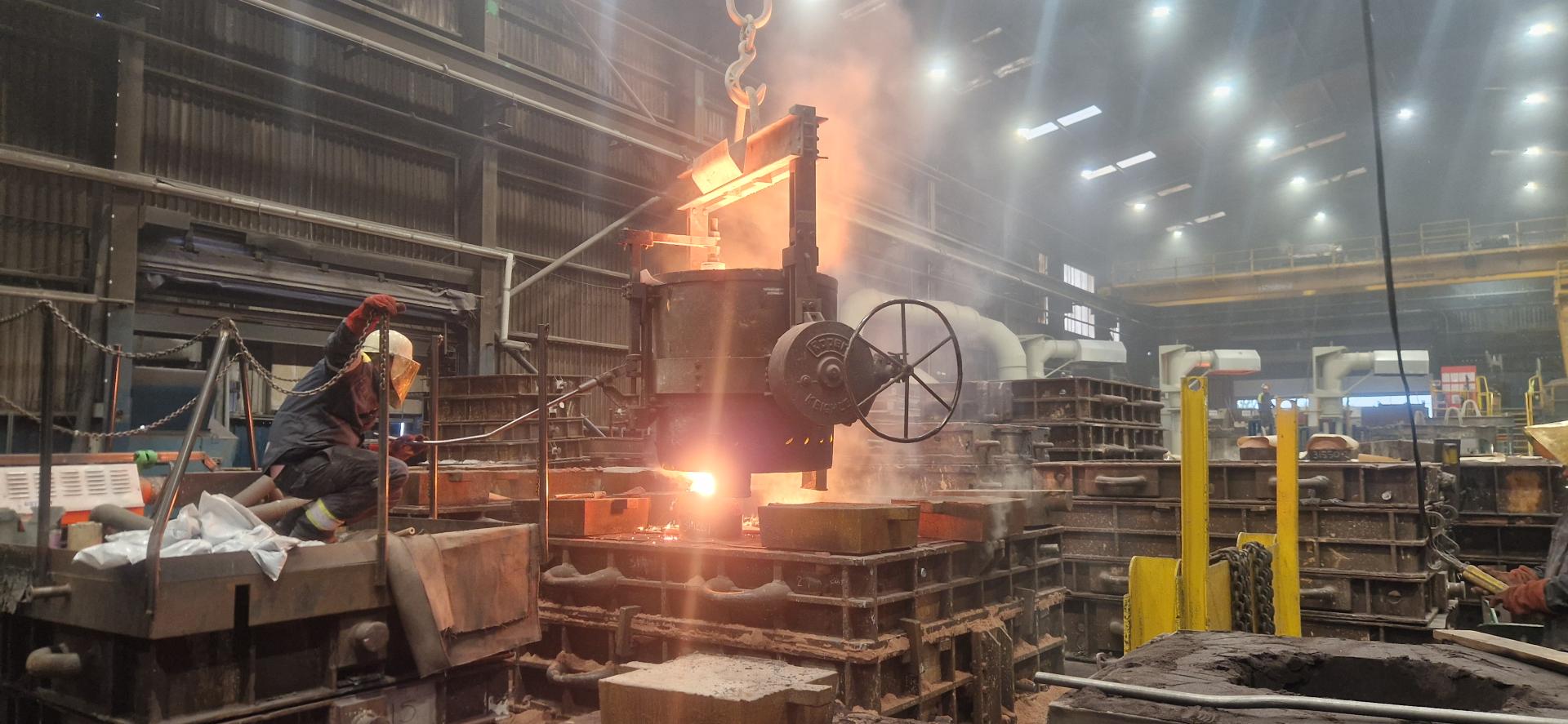

William Cook have cast 2 of the leading/trailing coupled wheels at their foundry. Here molten steel is being poured from the ladle into the mould. The casting will be allowed to cool down over the weekend before the wheels are broken out of the mould. Photo courtesy of William Cook Cast Products Ltd. |
| |
|
